12MP IP Camera

W7312CB99A

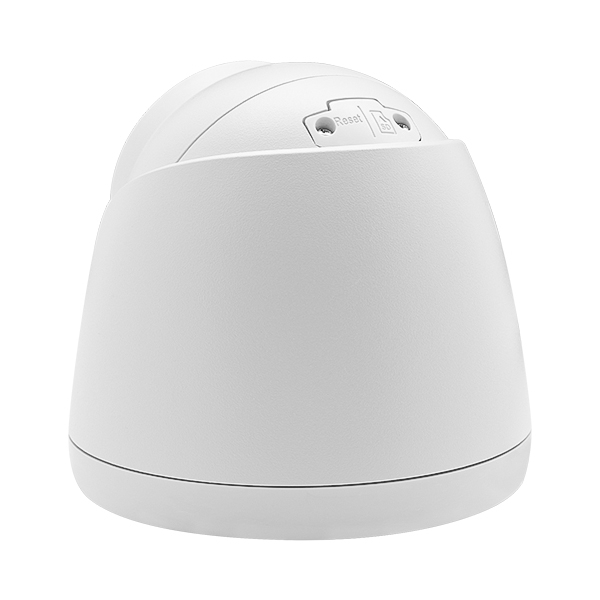

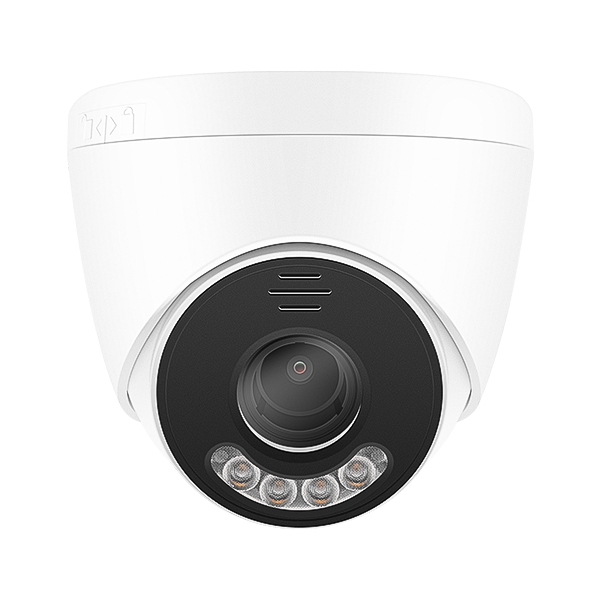

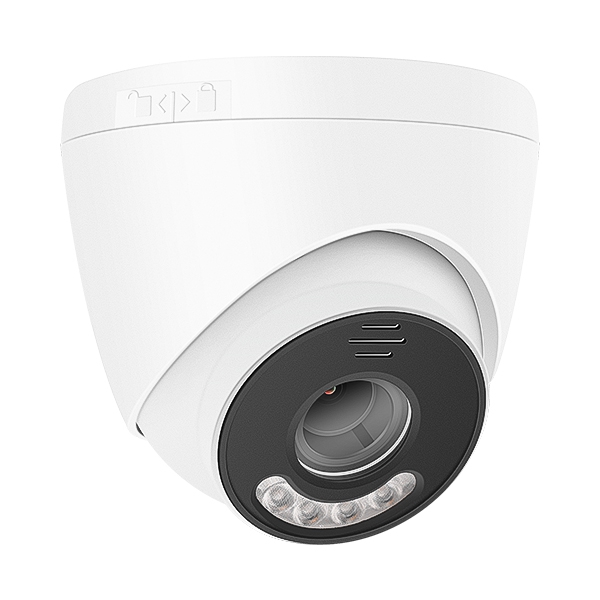

12MP ColorVu Turret IP Camera
Features:
1/2.3" Sony IMX577 CMOS sensor
12MP resolution 4000 x 3000P
Low illumination 0.01Lux
Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT
D-WDR, Mirror, Defogging
Multiply Style OSD Overlay,Motion Detection, Privacy Mask
RTSP and Onvif 17.06 compatible with many third-party NVR
H.264/H.265 dual-stream media server
Easy-to-use P2P Cloud service
Support user authentication, video data encryption
Support Alarm Snapshot to Email and FTP
Multiply WEB browser IE, Firefox 32bit ESR, PC Client, Mobile APP remote access
RJ45 100mbps network port, IEEE802.3af PoE
Lightning protection 4000V
Strong water-proof housing, IP67
4PCS dual light LEDs,soft and warm Light distance:30-40M , IR distance:30-40M
4 mm F1.6 fixed lens
Built-in Microphone and speaker, two way audio, with SD card slot
Human body and Vehicle detection

    Technical Specifications:

    Model

    W7312CB99A

    Camera

    Image Sensor

    1/2.3" Sony IMX577 CMOS

    Effective Pixels

    12 megapixels

    Electronic Shutter

    AUTO, 1/25s ~ 1/100000s

    Min. Illumination

    0.01Lux@F1.2(AGC ON), 0Lux IR on

    Day/Night

    Auto/Color/(B/W)/Timing

    WDR

    Digital WDR

    White Balance

    Auto/Manual

    BLC /HLC

    Support

    DNR

    2D/3D DNR

    Other

    Human body and Vehicle detection ,Privacy Mask, Flip ,OSD overlay, video cover alarm

    Encode

    Video Standard

    H.265+/H.265/H.264

    Video Resolution

    MainStream:25/30fps@12MP(4000x3000)/8MP(3840x2160)/6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc.

    Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc.

    Video Bitrates

    512Kbps - 12Mbps, VBR/CBR

    Audio Standard

    G.711-u/G.711-a/AAC

    Smart Detection

    Human body and Vehicle Detection

    LED and distance

    Led

    4PCS dual light LEDs

    Soft and warm Light Distance

    30-40 M

    IR distance

    30-40 M

    Lens

    Focal length

    4 mm F1.6 Fixed lens

    Functions

    Built in microphone and speaker ,with SD card slot(support up to 256GB SD card)

    Network Services

    Protocol

    HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc.

    P2P

    Yes

    Web

    IE , Firefox (32bit esr),Chrome ,Edge ,etc.

    Media

    CMS, Android, IOS

    ONVIF

    17.06 compatible

    General

    Network Port

    1-RJ45, 100Mbps, POE optional

    Power Supply

    12 VDC ± 10%

    Power Consumption

    < 10 W

    Operating Temp.

    -30℃-(+60)℃, 10%-90%RH
