2MP WDR (NVP2450+IMX307)

A852AHZ49A

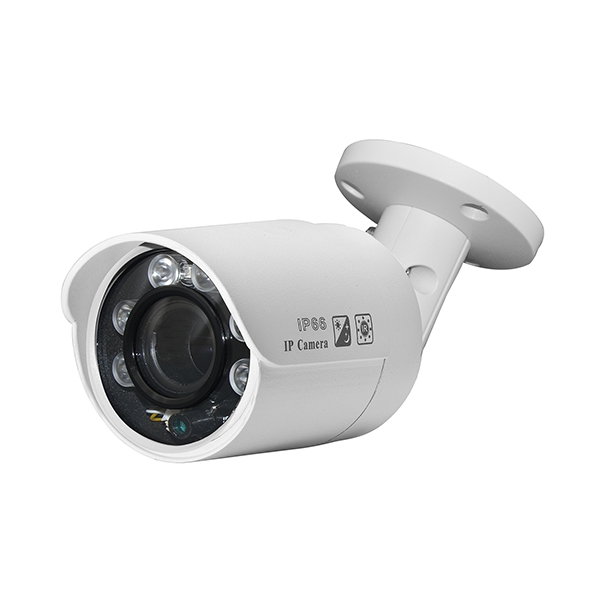

2MP 1080P 4 IN 1 WDR IR Waterproof Bullet Camera
Features:
1/2.8" 2.0 Mega Pixels Sony IMX307 CMOS sensor
Full HD resolution 1920 x 1080P
4-in-1 AHD/HD CVI/HD TVI/CVBS optional output
Up to 300M long distance and high speed real time monitoring
OSD menu control up the coaxial cable (UTC)
Ultra low illumination 0.001Lux
Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR
Multiple exposure WDR and Digital overlap WDR,up to 120db
Slow-Shutter, Sens up, Defog, Privacy Mask, Mirror, Lightning protection
Strong Waterproof housing, IP66
6PCS Array IR Leds, IR distance 30-40meters
HD 2.8/3.6mm MP fixed lens

    Technical Specifications:

    Model

    YC-A852AHZ49A

    Camera

    Image Sensor

    1/2.8" 2.0 Mega pixels Sony IMX307CMOS

    Chipset

    NVP2450H+IMX307

    Effective Pixels

    1945(H)×1097 (V)

    Video Resolution

    1080P@25/30fps

    Electronic Shutter

    AUTO, 1/25 - 1/50,000s

    Min. Illumination

    0.001Lux@F1.2(AGC ON), 0Lux IR on

    Video System

    PAL/NTSC

    Video Output

    1 -BNC, HDCVI / HDTVI/AHD/CVBS , adjustable

    Video Switch

    OSD Keys

    Day/Night

    Auto(ICR) / Color / B/W

    WDR

    Multiple exposure WDR and Digital overlap WDRup to120db

    White Balance

    AWB/ATW/Indoor/Outdoor/Manual

    AGC/BLC

    Support

    DNR

    2D 3D NR

    IR Led

    IR Led

    6PCS Array IR Leds

    IR Distance

    30-40 M

    Lens

    Focal length

    2.8/3.6mm MP fixed lens

    Zoom

    -

    General

    Power Supply

    12 VDC ± 10%

    Power Consumption

    < 5 W

    Operating Temp.

    -20℃-(+60)℃, 10%-90%RH
