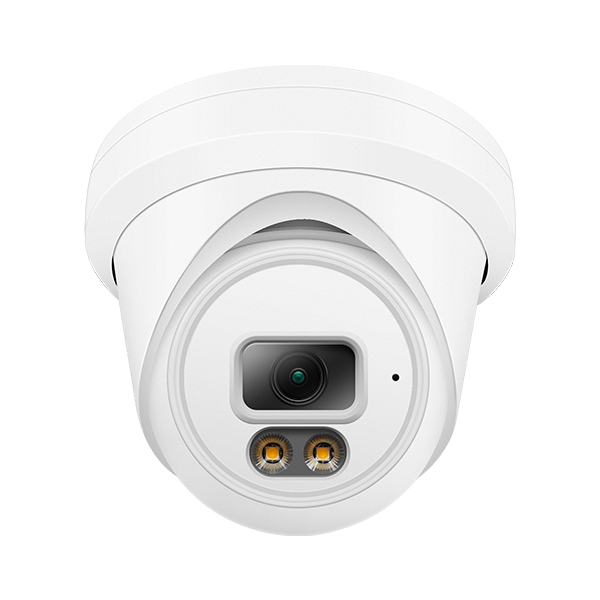

Model

I755ADB97SA

Camera

Image Sensor

1/2.7" 5MP CMOS

Effective Pixels

2888H x 1628V

Electronic Shutter

AUTO, 1/25s ~ 1/100000s

Min. Illumination

0.01Lux@F1.2(AGC ON), 0Lux IR on

Day/Night

Auto/Color/(B/W)/Timing

WDR

2-Exposure Line WDR upto 120dB

White Balance

Auto/Manual

AGC/BLC/HLC

Support

DNR

2D/3D DNR

Other

Multi-lines OSD, Privacy Mask, ROI, Watermark, Low Shutter, Scenes

Encode

Video Standard

Ultra 265, H.265, H.264, MJPEG

Video Resolution

Main Stream:
25fps@5MP(2880x1620)/4MP(2560x1440), 30fps@3MP(2304x1296)/1080P

Sub stream: 30fps@720P/D1/640x360/CIF

Third stream: D1, 640x360,CIF

Video Bitrates

128kbps – 6144kbps, VBR/CBR

Audio Standard

G.711-u/G.711-a

Built-in Mic

Yes

Built-in Speaker

No

Intelligent Detection

Human Detection, Vehicle Detection

Cross Line, Enter Area, Leave Area, Intrusion, People Flow Counting, Crowd Density Monitoring

Leds and distance

Leds

2PCS dual Light LEDs

Warm light distance

25-30 M

IR Distance

25-30 M

Lens

Focal length

HD 2.8mm F1.6 lens

Angle of View (H)

91.3°

Angle of View (V)

46.1°

Angle of View (D)

109.6°

Record

SD Slot

Max support 256GB TF card

Network Services

Protocol

HTTP(s)/IPv6/TCP/UDP/RTP/RTSP/FTP/SMTP/DDNS/DHCP/PPPoE/NTP, etc.

P2P

Yes

Web

IE, Firefox, Chrome, Edge, Safari, etc.

Media

CMS, Android, IOS
