4K 8MP IP Camera

W608FAHBB54A

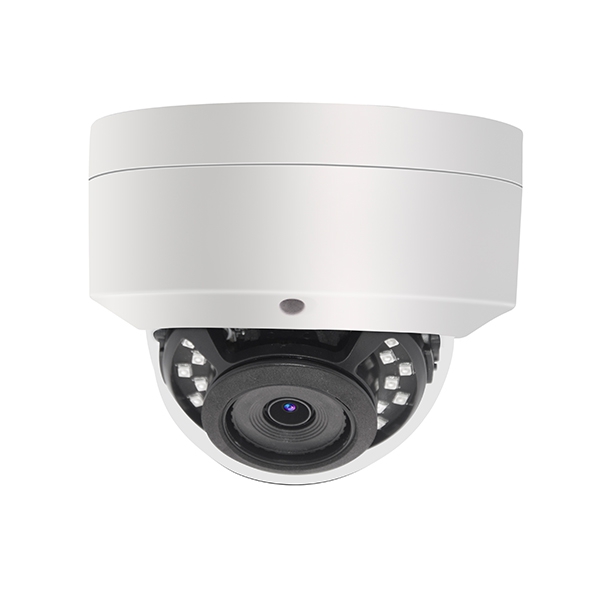

4K 8MP H.265/H.264 Metal Dome IP Camera
Features:
1/2.8" 8MP Sony IMX415 CMOS sensor
Full HD resolution 3840*2160P
Ultra low illumination 0.05Lux
Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT
D-WDR, Motion Detection, Privacy Mask, Mirror, rotate
RTSP and On-vif 17.06 compatible
H.265/ H.264 dual-stream media server
Easy-to-use P2P Cloud service
Multiply web browser, PC Client, mobile APP remote access
Optional customization Lens/Audio/POE, etc.
Lightning protection 4000V
IP66 waterproof , Material: Metal
18PCS SMD IR LEDs, IR distance 20-25 meters
3.6mm fixed Lens

    Technical Specifications:

    Model

    W608FAHBB54A

    Camera

    Image Sensor

    1/2.8" 8MP Sony IMX415 CMOS

    Effective Pixels

    3864 (H) × 2202 (V) approx. 8.51M pixels

    Electronic Shutter

    AUTO, AUTO, 1/25s ~ 1/100000s

    Min. Illumination

    0.05Lux@F1.2(AGC ON), 0Lux IR on

    Day/Night

    Auto/Color/(B/W)/Timing

    WDR

    Digital WDR

    White Balance

    Auto/Manual

    AGC/BLC

    Support

    DNR

    2D/3D DNR

    Other

    Motion Detection, Privacy Mask, Flip, Mirror

    Encode

    Embedded Solution

    MC338Q

    Video Standard

    H.264/H.265

    Video Resolution

    MainStream:20fps@8MP(3840x2160),

    30fps@6MP(3072x2048),5MP(2592x1520),3MP/1080P/720P

    Video Bitrates

    Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps

    Audio Standard

    512Kbps - 12Mbps, VBR/CBR

    IR Led

    IR Led

    18PCS SMD IR Leds

    IR Distance

    20-25M

    Lens

    Focal length

    3.6mm fixed lens

    Optional Function

    Audio, POE etc.

    Network Services

    Protocol

    RTSP/DHCP/NTP/DST/FTP/SMTP

    P2P

    Yes

    Web

    IE , Firefox, etc.

    Media

    CMS, Android, IOS

    ON-VIF

    17.06 compatible

    General

    Network Port

    1-RJ45, 100Mbps, POE optional

    Power Supply

    12 VDC ± 10%

    Power Consumption

    < 5 W

    Operating Temp.

    -30-(+60), 10%-90%RH
