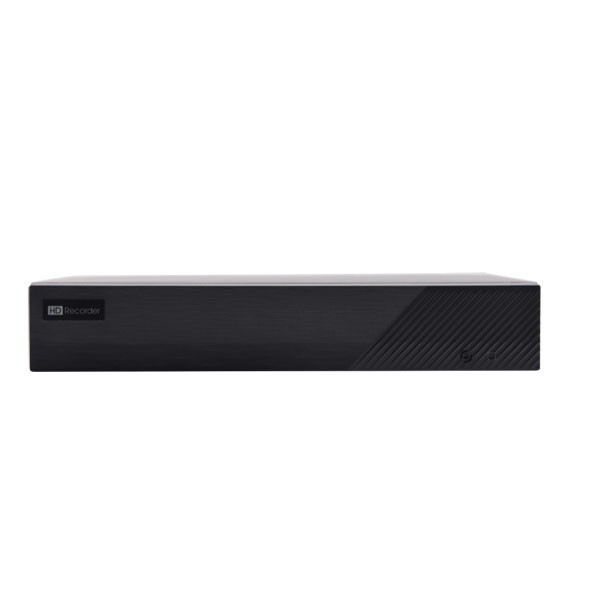

Model

YCX-XVR5104-HC

System

Compression

Standard H.265 High Profile

CPU

Cortex A9

OS

Embedded Linux

Video

Input

BNC × 4

Resolution

TVI/ AHD : 5MP/ 4MP/ 3MP/ 1080P/ 720P/ WD1                                                                    CVI : 4MP/ 3MP/ 1080P/ 720P/ WD1

IP Input

2CH ( Up to 6CH )

Output

HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768

VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768

BNC × 1 : CVBS ( used as the main or spot output )

Audio

Input

RCA × 1

Output

RCA × 1

Two-way audio

Take up channel one audio input

Record

Resolution

5MP Lite/ 4MP Lite/ 1080P/ 1080P Lite/ 720P/ WD1

Frame Rate

5MP Lite :10fps

4MP Lite : 12fps (PAL)/15fps (NTSC)

1080P : 12fps (PAL)/15fps (NTSC)

1080P Lite/720P/WD1 : 25fps (PAL)/30fps (NTSC)

Bit Rate

32Kbps ~ 4Mbps

Mode

Manual, timer, motion

IP Input

Resolution

Up to 5MP@25fps

Play back

Playback

4 CH

Search

Time slice / time / event / tag search

Smart Search

Highlight colors to display the camera record in a certain period of time, different colors refer to different record events

Function

Play, pause, FF, FB, digital zoom, etc.

Alarm

Mode

Manual, motion, exception

Input

No

Output

No

Triggering

Record, snap, preset, e-mail, etc.

Network

Interface

RJ45 100Mbps × 1

Protocol

TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP

Accss/Transfer Bandwidth

36/40Mbps

Mobile Device

OS

iOS, Andriod

Storage

HDD

SATA × 1, up to 6TB

Backup

Local Backup

U disk, USB removable HDD

Network Backup

Yes

Port

RS485

RS485 × 1, connect to PTZ or keyboard

USB

USB 2.0 × 2 ( in the rear panel )

Remote Controller

Optional

Others

Power Supply

DC12V / 1.5A

Consumption

≤5W( without HDD)

Dimensions

255mm × 233mm × 42 mm( W × D × H )

Work Environment

-10 ～ 50 ℃，10% ～ 90% humidity
