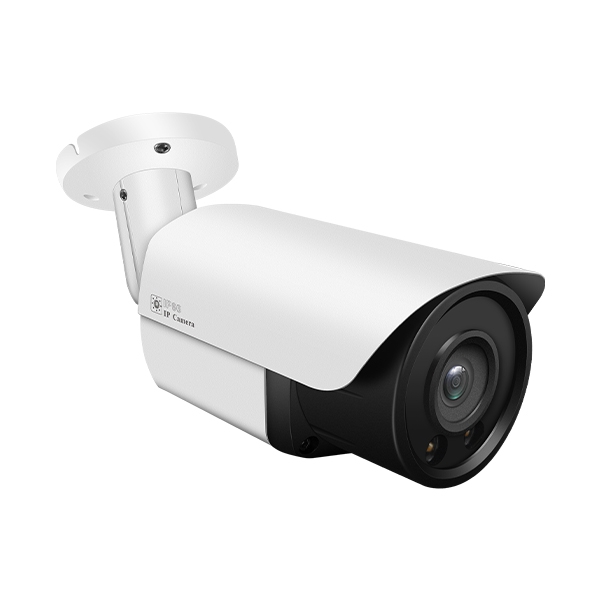

Color View IP camera

W608FADZ37YA (8MP Dual Light)

4K Dual Lights Two way audio Bullet IP POE Camera
Features:
1/2.8" Sony CMOS sensor
4K resolution 3840 x 2160P
Low illumination 0.01Lux
Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT
D-WDR,Mirror, rotate, Defogging
Multiply Style OSD Overlay,Motion Detection, Privacy Mask
RTSP and Onvif 17.06 compatible with many third-party NVR
H.264/H.265 dual-stream media server
Easy-to-use P2P Cloud service
Support user authentication, video data encryption
Support Alarm Snapshot to Email and FTP
Multiply WEB browser IE,Firefox 32bit ESR, PC Client, Mobile APP remote access
RJ45 100mbps network port, IEEE802.3af PoE
Lightning protection 4000V
Strong water-proof housing, IP66
2 pcs Warm Light + 2 pcs IR LEDs, Light distance:25-30M
2.8mm F1.6 lens
Supports Vehicle & human body detection
Two-way Audio & SD card slot

    Technical Specifications:

    Model

    W608FADZ37YA

    Camera

    Image Sensor

    1/2.8" SONY IMX415 CMOS

    Effective Pixels

    3840 (H) × 2160 (V)

    Electronic Shutter

    AUTO, 1/25s ~ 1/100000s

    Min. Illumination

    0.001Lux@F1.2(AGC ON), 0Lux IR on

    Day/Night

    Auto/Color/(B/W)/Timing

    WDR

    Digital WDR

    White Balance

    Auto/Indoor/Outdoor

    BLC

    Support

    DNR

    2D/3D DNR

    Other

    Motion Detection, Privacy Mask, Mirror, flip

    Encode

    Embedded Solution

    Mstar 338Q

    Video Standard

    H.264/H.265

    Video Resolution

    Main Stream:20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc.

    Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc.

    Video Bitrates

    512Kbps - 12Mbps, VBR/CBR

    Audio Standard

    G.711-u/G.711-a

    OSD Overlay

    Title and Time overlay

    Leds

    Leds

    2 pcs Warm Light+2 pcs IR LEDs, Light distance:25-30M

    Light Distance

    25-30 M

    Lens

    Focal length

    2.8mm F1.6 true starlight lens

    Network Services

    Protocol

    HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.

    P2P

    Yes

    Web

    IE , Firefox, etc.

    Media

    CMS, Android, IOS

    ONVIF

    17.06 compatible

    General

    Network Port

    1-RJ45, 100Mbps,

    Power Supply

    IEEE802.3af PoE, 12 VDC ± 10%

    Power Consumption

    < 8 W

    Operating Temp.

    -30°C-(+60)°C, 10%-90%RH
