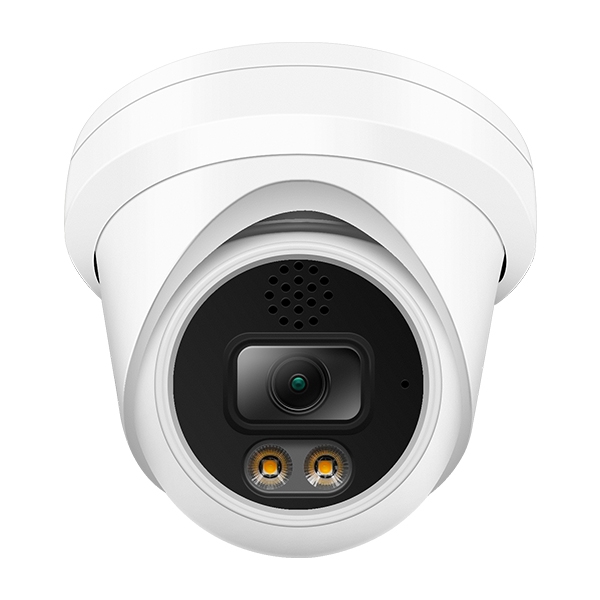

Color View IP camera

W716CB97KBA (6MP Color View)

6MP Color View turret IP Camera with two way audio
Features:
1/2.8" Sony IMX335 CMOS sensor
Full HD resolution 3072 x 2048P
Ultra low illumination 0.001Lux
Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR, IR-CUT
D-WDR, Motion Detection, Privacy Mask, Mirror
RTSP and Onvif 17.06 compatible
H.265/H.264 dual-stream media server
Easy-to-use P2P Cloud service
Multi web browser, PC Client, mobile APP remote access
Internal Microphone, reset button optional
Lightning protection 4000V
RJ45 100mbps network port, IEEE802.3af PoE
Strong water-proof housing, IP67
2PCS Soft & Warm Supplemental Light,Light distance:25-30M
HD 2.8mm F1.0 true starlight lens
Two way audio: Built-in Mic and speaker
Support audio alarm to warn intruders off
Micro-SD slot, max support 256GB TF card
Reset button
Human body detection, Vehicle detection

    Technical Specifications:

    Model

    W716CB97KBA

    Camera

    Image Sensor

    1/2.8" Sony CMOS

    Effective Pixels

    3072(H)×2048 (V)

    Electronic Shutter

    AUTO, 1/25s ~ 1/100000s

    Min. Illumination

    0.01Lux@F1.2(AGC ON), 0Lux IR on

    Day/Night

    Auto/Color/(B/W)/Timing

    WDR

    Digital WDR

    White Balance

    Auto/Manual

    AGC/BLC/HLC

    Support

    DNR

    2D/3D DNR

    Other

    Multi-lines OSD, Motion Detection, Privacy Mask, Mirror

    Encode

    Video Standard

    H.264/H.265

    Video Resolution

    Main Stream:
    25fps@6MP(3072*2048)/5MP(2592x1944), 30fps@4MP/3MP/1080P/720P

    Sub stream: 30fps@D1/VGA/360P/CIF, etc.

    Video Bitrates

    64Kbps - 8Mbps, VBR/CBR

    Audio Standard

    G.711-u/G.711-a/AAC

    Audio

    Two way (Mic and Speaker)

    Smart Event

    Human Detection

    Vehicle Detection
    Motion Detection

    IR Led

    IR Led

    2PCS Soft & Warm Supplemental Light

    IR Distance

    20-30 M

    Lens

    Focal length

    HD 2.8mm F1.0 true starlight lens

    Other Function

    Reset button, SD slot(support max 256GB)

    Network Services

    Protocol

    HTTP(S)/RTSP/RTMP/FTP/NFS/SMTP/DHCP/NTP, etc.

    P2P

    Yes

    Web

    IE , Firefox 32bit ESR, etc.

    Media

    CMS, Android, IOS

    ONVIF

    17.06 compatible

    General

    Network Port

    1-RJ45, 100Mbps, POE

    Power Supply

    12 VDC ± 10%

    POE

    IEEE802.3af PoE

    Power Consumption

    < 5 W

    Operating Temp.

    -30℃-(+60)℃, 10%-90%RH
