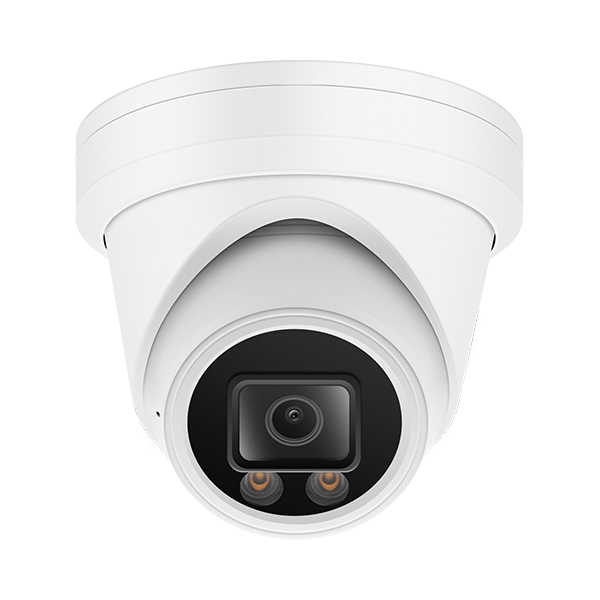

Color View IP camera

W716FCB97BA

Features:
1/2.8" Sony IMX335 CMOS sensor
Full HD resolution 3072x2048P
Ultra low illumination 0.01Lux
Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR, IR-CUT
D-WDR, Motion Detection, Privacy Mask, Mirror
RTSP and Onvif 17.06 compatible
H.265/H.264 dual-stream media server
Easy-to-use P2P Cloud service
Multi web browser, PC Client, mobile APP remote access
Lightning protection 4000V
RJ45 100mbps network port, IEEE802.3af PoE
Strong water-proof housing, IP67
2 pcs Soft & Warm Supplemental Light, Light distance:25-30M
HD 2.8mm F1.0 starlight lens
Human body/vehicle detection
24/7 Colorful Imaging

    Technical Specifications:

    Model

    YC-W716FCB97BA

    Camera

    Image Sensor

    1/2.8" IMX335 CMOS

    Effective Pixels

    3072(H)×2048(V)

    Electronic Shutter

    AUTO/Manual: 1/10s ~ 1/10000s, shutter threshold

    Min. Illumination

    0.001Lux@F1.2(AGC ON), 0Lux IR on

    Day/Night

    Auto/Color/(B/W)/Timing

    WDR

    Digital WDR / HDR

    White Balance

    Auto/Manual

    BLC/HLC

    Support

    DNR

    2D/3D DNR

    Light Control

    Auto/Manual, Mode switch, Brightness level, OFF, Light ON Illumination

    License Plate Mode

    Yes

    Other

    Multi-lines OSD, Custom Title, Privacy Mask, Flip, Reset button

    Encode

    Embedded Solution

    SSC377D

    Video Standard

    H.264/H.265/H.265+

    Video Resolution

    Main Stream:
    25fps@6MP(3072x2048)/5MP(2592x1944), 30fps@4MP/3MP/1080P/720P

    Sub stream: 30fps@D1/VGA/360P/CIF, etc.

    Video Bitrates

    32Kbps - 8Mbps, VBR/CBR

    Audio Standard

    G.711-u/G.711-a

    Built-in Mic

    Optional

    OSD Overlay

    Title and Time overlay

    LED

    Leds

    2 pcs Soft & Warm Supplemental Light

    Light Distance

    25-30 M

    Lens

    Focal length

    HD 2.8mm F1.0 starlight lens

    Language

    English, simplified Chinese, Chinese Traditional, Deutsch, Italian, Turkish, Polish, Korean, Japanese,  Russian, Ukrainian, Persian.

    Network Services

    Protocol

    HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.

    P2P

    Yes

    Web

    IE, Firefox, Chrome, Edge, Safari, etc.

    Media

    CMS, Android, IOS

    ONVIF

    17.06 compatible

    General

    Network Port

    1-RJ45, 100Mbps

    Power Supply

    12 VDC ± 10%

    POE

    802.3af/at 48V

    Power Consumption

    < 8 W

    Operating Temp.

    -30°C-(+60)°C, 10%-90%RH
