Model

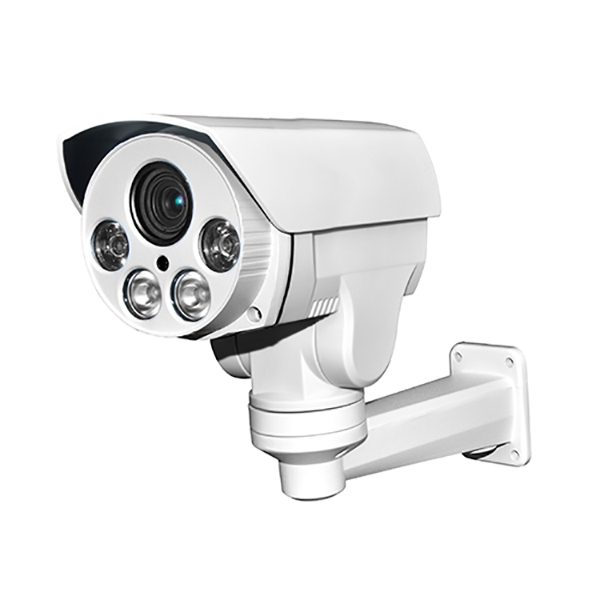

YC-DHM200IRP

Camera

Image Sensor

1/2.9" Sony Exmor CMOS

Effective Pixels

1920(H)×1080 (V)

Electronic Shutter

AUTO, 1/25s ~ 1/100000s

Min. Illumination

0.01Lux@F1.6(AGC ON), 0Lux IR on

Day/Night

Auto/Color/(B/W)

WDR

Digital WDR

White Balance

Auto

AGC/BLC/HLC

Support

DNR

2D/3D DNR, multi-levels adjustable

OSD Menu

Support

Other

Motion, Privacy Mask, Mirror, Flip

Encode

Embedded Solution

Ambarella S2L55M

Video Standard

H.264

Video Resolution

1080P@25/30fps

Video Bitrates

32Kbps - 16Mbps, VBR/CBR

Audio Standard

G.711-u

IR Led

IR Led

4 pcs 850nm Array IR Leds

IR Distance

60-80 M

Lens

Focal length

5.1 -51 mm AF lens

Zoom

10x optical zoom

PTZ

Pan/Tilt Range

Pan: 0° ~ 300°; Tilt: -5° ~ 60°

Preset Point

256

Manual Control Speed

Pan: 0.5° ~12° /s; Tilt: 0.51° ~12° /s

Preset Tour

8 lines

Pattern Scan

4 lines

Power On Action

None/Preset/Pan scan/Cruise

Optional Function

POE, Audio, Alarm In/Out, SD card, etc.

Network Services

Web

IE , etc.

Media

CMS, Android, IOS

ONVIF

2.4 compatible

General

Network Port

1-RJ45, 100Mbps, POE optional

Power Supply

12 VDC ± 10%

Power Consumption

< 15 W

Operating Temp.

-30℃-(+60)℃, 10%-90%RH
