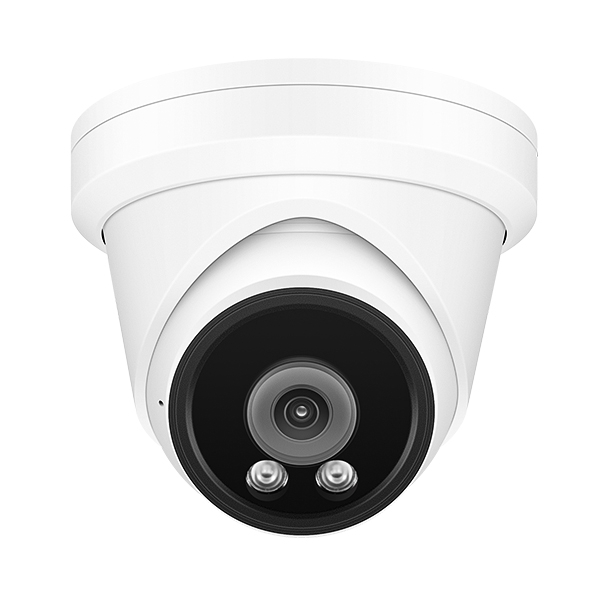

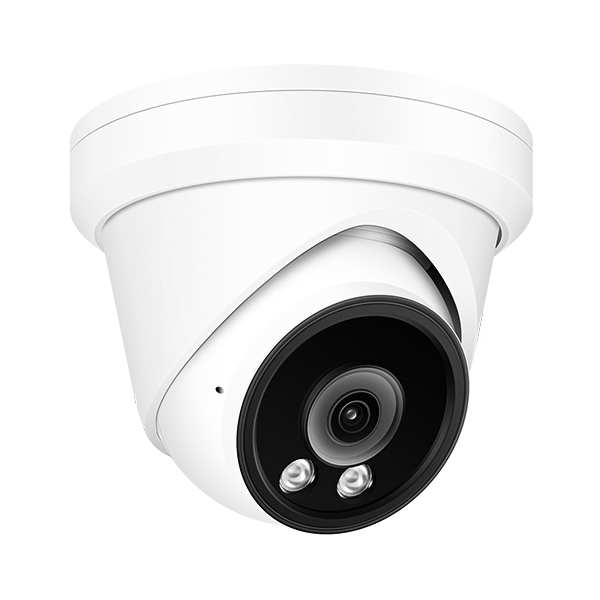

Model

YC-W716AHBB97WA

Camera

Image Sensor

1/2.8" Sony CMOS

Effective Pixels

3072(H)×2048 (V)

Electronic Shutter

AUTO, 1/25s ~ 1/100000s

Min. Illumination

0.01Lux@F1.2(AGC ON), 0Lux IR on

Day/Night

Auto/Color/(B/W)/Timing

WDR

Digital WDR

White Balance

Auto/Manual

AGC/BLC/HLC

Support

DNR

2D/3D DNR

Other

Multi-lines OSD, Motion Detection, Privacy Mask, Mirror

Encode

Video Standard

H.264/H.265

Video Resolution

Main Stream:
25fps@6MP(3072x2048)/5MP(2592x1944), 30fps@4MP/3MP/1080P/720P

Sub stream: 30fps@D1/VGA/360P/CIF, etc.

Video Bitrates

64Kbps - 8Mbps, VBR/CBR

Audio Standard

G.711-u/G.711-a/AAC

Built-in Mic

Optional

Smart Event

Human Detection

Vehicle Detection
Motion Detection

IR Led

IR Led

2pcs Array IR Leds

IR Distance

20-30 M

Lens

Focal length

2.1mm fixed

FOV

Horizontal: 135° ; Vertical: 75° ; Diagonal: 156°

Network Services

Protocol

HTTP(S)/RTSP/RTMP/FTP/NFS/SMTP/DHCP/NTP, etc.

P2P

Yes

Web

IE , Firefox 32bit ESR, Chrome, etc.

Media

CMS, Android, IOS

ONVIF

17.06 compatible

General

Network Port

1-RJ45, 100Mbps

Power Supply

12 VDC ± 10%

POE

IEEE 802.3at

Power Consumption

< 5 W

Operating Temp.

-30℃-(+60)℃, 10%-90%RH

Ingress Protection

IP67

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API,SDK
