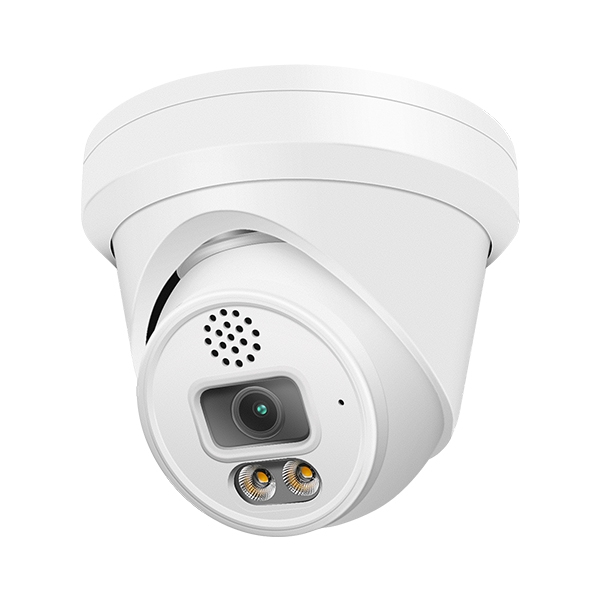

Model

W716RB97KA

Camera

Image Sensor

1/2.8" SONY IMX335 CMOS

Effective Pixels

3072 (H) × 2048 (V)

Electronic Shutter

AUTO, 1/25s ~ 1/100000s

Min. Illumination

0.01Lux@F1.2(AGC ON), 0Lux IR on

Day/Night

Auto/Color/(B/W)/Timing

WDR

Digital WDR

White Balance

Auto/Manual

BLC

Support

DNR

2D/3D DNR

Other

Human body and Vehicle detection,Motion Detection, Privacy Mask, Mirror, flip

Encode

Embedded Solution

Sigmastar 30KQ

Video Standard

H.264/H.265

Video Resolution

Main Stream:
25fps@6MP(3072x2048)/5MP(2592x1944), 30fps@4MP/3MP/1080P/720P

Sub stream: 30fps@D1/VGA/360P/CIF, etc.

Video Bitrates

64Kbps - 8Mbps, VBR/CBR

Audio Standard

G.711-u/G.711-a/AAC

OSD Overlay

Title and Time overlay

Built-in Mic

Yes

Built-in Speaker

Yes Two-way audio

Storage

Micro SD Slot (support up to 256G )

LEDs

LEDs

1PC Soft & Warm Supplemental Light+1PC red and blue flashlight alarm Light

Light Distance

20-30 M

Lens

Focal length

HD 2.8mm F1.0 true starlight lens

Network Services

Protocol

HTTP(S)/RTSP/RTMP/FTP/NFS/SMTP/DHCP/NTP, etc.

P2P

Yes

Web

IE , Firefox 32bit ESR,Chrome,Edge , etc.

Media

CMS, Android, IOS

ONVIF

17.06 compatible

General

Network Port

1-RJ45, 100Mbps,

Power Supply

POE ,12 VDC ± 10%

POE

IEEE802.3af

Power Consumption

< 8 W

Operating Temp.

-30℃-(+60)℃, 10%-90%RH
