New Product

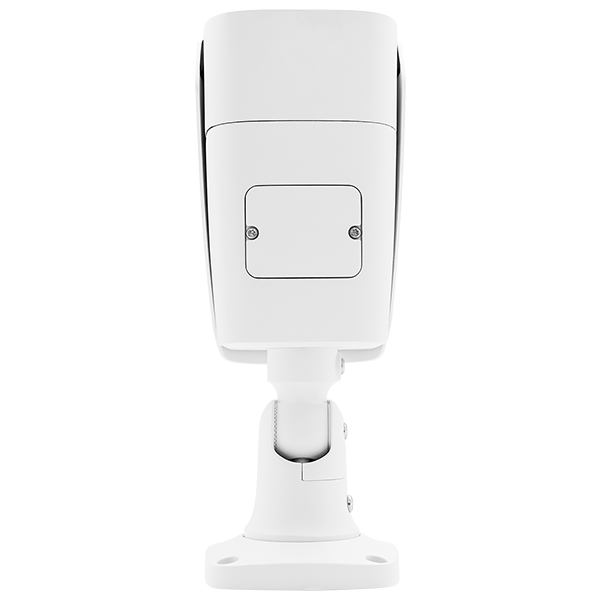

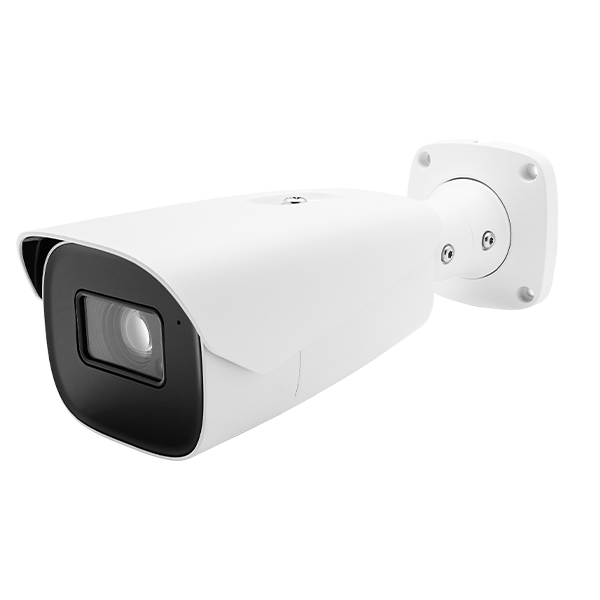

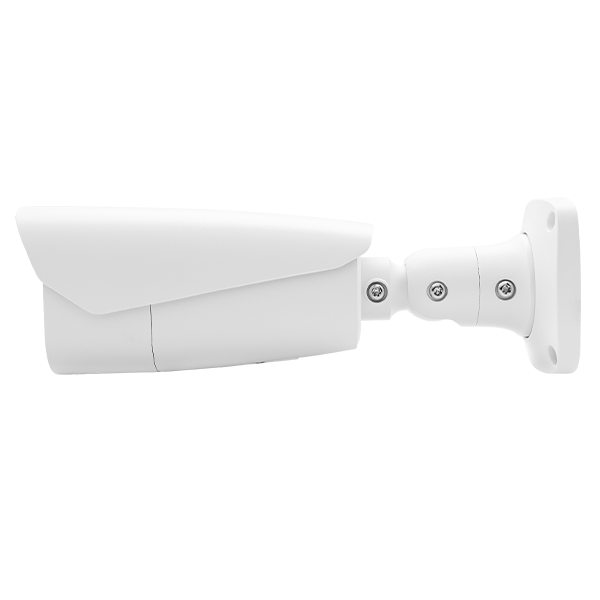

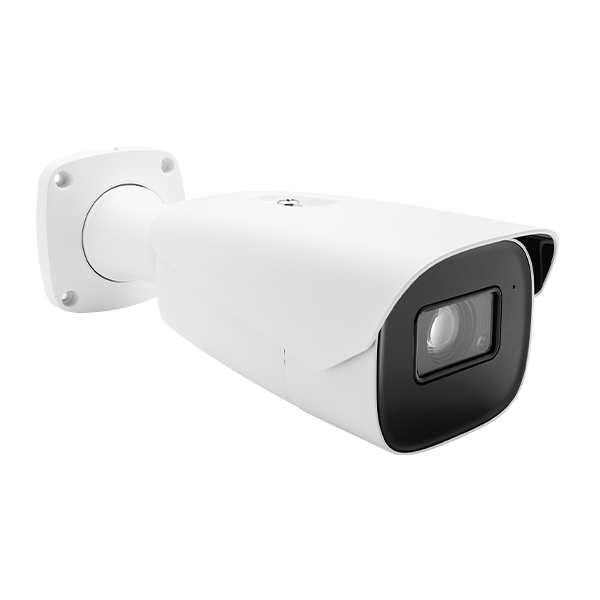

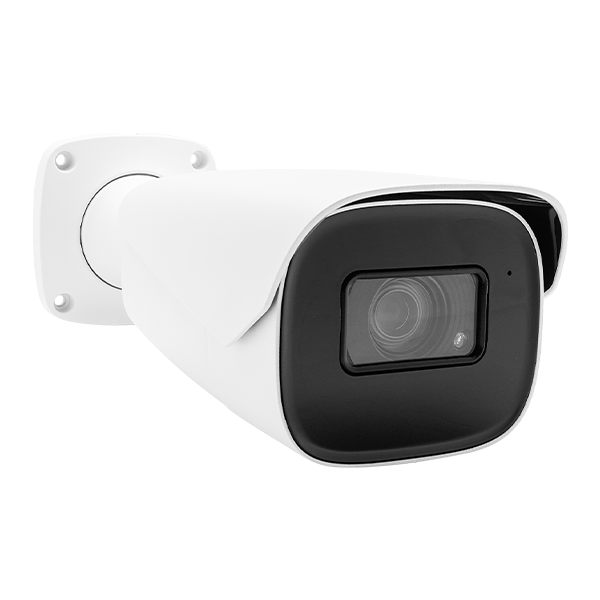

YC-9443A3BH-LR

4MP HD License Plate Recognition Bullet Network Camera

4MP (2592 × 1520 ) @30fps
Support H265+/H264+/H265/H264/MJPEG coding ICR auto switch , true day/night
Motorized lens
3D DNR, true WDR, HLC , BLC and ROI coding
Built-in micro SD card slot , up to 256GB DC12V/AC24V/PoE power supply
Support three streams
IP67
Support mobile surveillance by smart phones with iOS and Android OS Support license plate detection and recognition

      Model

    YC-9443A3BH-LR

    Camera

    Image Sensor

    1 / 1.8" CMOS

    Image Size

    2592 × 1520

    Electronic Shutter

    Manual or auto; manual: 1 / 1 s ~ 1 / 100000s

    Iris Type

    DC Iris

    Min . Illumination

    0.0007 lux@F1.3,AGC ON; 0 lux with IR 0.001 lux@F1.6, AGC ON; 0 lux with iR

    Lens

    2.8 ~ 12mm @F1.3, motorized

    8 ~32mm @F1.6, motorized

    Field of View

    Horizontal:100.4°~49°; Vertical: 57°~ 29°; Diagonal: 117.5°~56°

    Horizontal: 41°~15.5°; Vertical: 23°~ 9.5°;  Diagonal: 46.5°~18°

    Lens Mount

    Integrated

    Recommended   ANPR Distance

    3~ 8m

    7~30m

    Wide Dynamic Range

    120dB

    BLC

    Yes

    HLC

    Yes

    Defog

    Yes

    Digital NR

    3D DNR

    S/N Ratio

    50dB

    Angle Adjustment

    Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360°


    Video Compression

    Main stream: H.265+ / H.265 / H.264+ / H.264

    Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG

    Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG

    H.264 Compression Standard

    Baseline Profile/Main Profile/High Profile

    Resolution

    4MP (2592 ×1520 ), 2K (2560 ×1440), 3MP(2304 ×1296),1080P(1920 ×1080), 720P (1280 ×720 ), D1, CIF

    Main Stream

    4MP/2K/3MP/1080P( 60Hz  :1 ~ 30fps;   50Hz  :  1  ~  25fps  )

    HFR Mode: 1080P(60Hz: 1~60fps; 50Hz: 1~50fps)

    Sub Stream

    720P/D1/CIF ( 60Hz :1 ~ 30fps;  50Hz : 1 ~ 25fps )

    Third Stream

    D1/CIF  ( 60Hz :1 ~ 30fps;  50Hz : 1 ~ 25fps )

    Bit Rate

    64 Kbps ~ 8 Mbps

    Bit Rate Type

    VBR / CBR

    Audio Compression

    G711A / U

    Image Settings

    ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, Image   Mirror, Image Flip, NR,etc .  adjustable through client software or web browser

    ROI

    Each ROI to be configured separately

    Interfaces

    Network

    RJ 45 10M/100M self-adaptive Ethernet port

    Video Output

    CVBS output (BNC× 1)

    Audio

    1CH audio input; 1CH audio output

    Storage

    Built-in micro SD card slot; up to 256GB

    Reset

    Yes

    Alarm

    1CH alarm input; 1CH alarm output

    RS 485

    Yes

    Wiegand

    Yes  (26bit)

    Functions

    Remote Monitoring

    Web Browser/NVMS2.0/NVR/mobile APP

    Web Browser

    IE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+

    Online Connection

    Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission

    Network Protocol

    UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, HTTP POST,802.1x, UPnP, HTTPs, QoS

    Interface Protocol

    ONVIF

    Storage

    Network remote storage; micro SD card storage

    Smart Alarm

    Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection

    Intelligent Analytics

    License plate recognition, video exception detection

    Security

    Video encryption, firmware encryption, HTTPs encryption,  configuration encryption, illegal login lock, IP address filtering, 802.1x authentication,   basic and digest authentication for HTTP/HTTPs

    General Function

    Watermark, video mask, heartbeat, corridor mode

    PoE

    Yes , IEEE802.3af

    IR Distance

    50~70m

    70~100m

    Protection Grade

    IP67

    LPR

    Snapshot

    Original image (4MP resolution) and license plate image

    Vehicle Plate Database

    10,000

    License Plate Detection &   Recognition

    Capture of vehicles with license plates and vehicles without license plate, Support plate exposure, travel direction recognition, plate character fault  tolerance, plate comparison, snapshot time display

    Vehicle feature extraction: including vehicle color, plate color, vehicle type, vehicle brand/model, production year, etc .

    Capture Speed Range

    0~120km/h

    Others

    Power Supply

    DC12V/AC24V/PoE

    Power Consumption

    < 12W

    Operating Environment

    - 30 °C ~ 60 °C (-22°F~140°F); Humidity: less than 95 % (non-condensing)

    Storage Environment

    - 30 °C ~ 65 °C (-22°F~149°F); Humidity: less than 95 % (non-condensing)

    Dimensions ( mm )

    278.3 × 100.2 × 88.7

    Weight ( net )

    Approx . 1.176KG

    Installation

    Ceiling mounting; Wall mounting

    Certificate

    CE, FCC

    Environmental Protection

    Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
