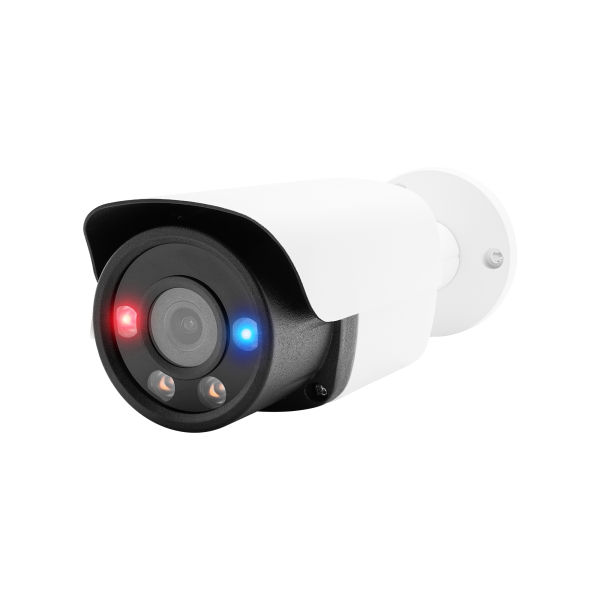

Model
|
YC-W798FDRZ37YA
|
|
Camera
|
|
|
Image Sensor
|
1/2.8" 8MP Sony IMX415 CMOS
|
|
Effective Pixels
|
3840×2160
|
|
Electronic Shutter
|
AUTO/Manual: 1/10s ~ 1/10000s, shutter threshold
|
|
Min. Illumination
|
0.01Lux@F1.6(AGC ON), 0Lux IR on
|
|
Day/Night
|
Auto/Color/(B/W)/Timing
|
|
WDR
|
Digital WDR
|
|
White Balance
|
Auto/Manual
|
|
BLC/HLC
|
Support
|
|
DNR
|
2D/3D DNR
|
|
Light Control
|
Auto/Manual, Mode switch, Brightness level, OFF, Light ON Illumination
|
|
License Plate Mode
|
Yes
|
|
Other
|
Multi-lines OSD, Custom Title, Privacy Mask, Flip
|
|
Encode
|
|
|
Video Standard
|
H.264/H.265/H.265+
|
|
Video Resolution
|
Main Stream:
20fps@3840x2160,25fps@3072x2048,30fps@5MP/2560×1440/2304×1296/1920×1080/1280×720 Sub Stream: 30fps@D1/VGA(640×480)/640×360,480×360,CIF(352×288) Third Stream:
10fps@1080P/720P/CIF(352×288) |
|
Video Bitrates
|
512Kbps - 12Mbps, VBR/CBR
|
|
Audio Standard
|
G.711-u/G.711-a/AAC
|
|
Built-in Mic
|
Yes, Audio Echo Cancellation
|
|
Built-in Speaker
|
Yes, Two-way audio
|
|
Memory Slot
|
Yes, maximum 512GB
|
|
OSD Overlay
|
Title and Time overlay, Snapshot, Reset button, SD slot
|
|
Smart Detection
|
|
|
Motion Detection
|
Support
|
|
Line-crossing
|
Support
|
|
Filter Static Target
|
Support
|
|
Target Detection
|
Human, vehicle, non-motor vehicle
|
|
Smart Alarm Linkage
|
|
|
Show Target Rectangle
|
Support
|
|
Blink Detection Area
|
Support
|
|
Blink Video Border
|
Support
|
|
Blink White Light
|
Support
|
|
Upload Alarm Center
|
Support
|
|
Alarm Push To App
|
Support
|
|
Trigger Audio Siren
|
Support
|
|
Trigger Red&Blue flashing
|
Support
|
|
Trigger Record & snapshot
|
Support
|
|
Led
|
|
|
Fill light
|
2 pcs IR&Warm-light dual-wick Led
|
|
Red & Blue alarm light
|
1PC Red&1PC Blue
|
|
IR Distance
|
20-30 M
|
|
Lens
|
|
|
Focal length
|
2.8 mm fixed lens
|
|
Language
|
|
|
English, simplified Chinese, Chinese Traditional, Deutsch, Italian, Turkish, Polish, Korean, Japanese, Russian, etc.
|
|
|
Storage
|
|
|
TF card (Max.512G), Cloud plan, NVR, Youtube (RTMP), FTP or Email (image), NFS(NAS)
|
|
|
Network Services
|
|
|
Protocol
|
HTTP/RTSP/FTP/NFSv3/SMTP/DHCP/NTP/RTMP, etc.
|
|
P2P
|
Yes
|
|
Web
|
IE, Firefox, Chrome, Edge, Safari, etc.
|
|
Media
|
CMS, Android, IOS
|
|
ONVIF
|
17.06 compatible
|
|
General
|
|
|
Network Port
|
1-RJ45, 100Mbps, POE 802.3af/at 48V
|
|
Power Supply
|
12 VDC ± 10%
|
|
Power Consumption
|
< 8 W
|
|
Operating Temp.
|
-30℃-(+60)℃, 10%-90%RH |
