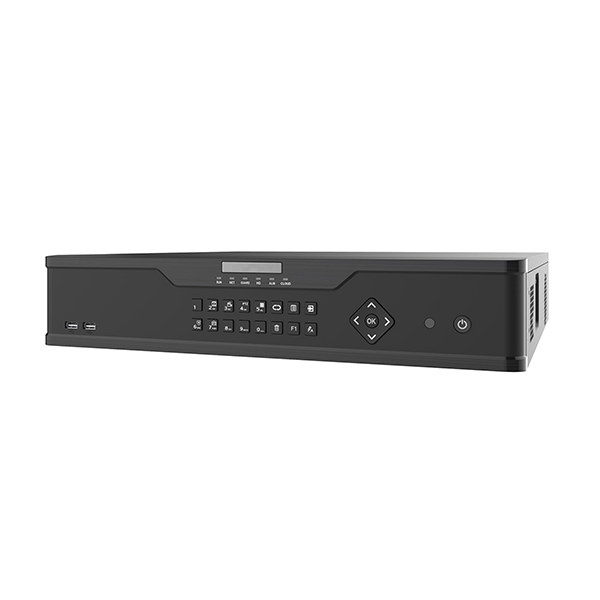

16CH POE 4K NVR with 4 SATA

Key Features

Support Ultra 265/H.265/H.264 video formats

16-channel input

Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T

Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K(3840x2160) resolution

HDMI1/VGA and HDMI2 independent outputs provided

Up to 12 Megapixels resolution recording

4 SATA HDDs, Up to 10TB for each HDD

Various fisheye dewarping modes for live view and playback for both web interface and GUI

Support for 12V Power output

Plug & Play with up to 16 independent PoE network interfaces

ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade

Model	NVR3416-16P
Video/Audio Input
IP Video Input	16-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming Bandwidth	160Mbps
Outgoing Bandwidth	320Mbps
Remote Users	128
Protocols	P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA output	HDMI1/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI2: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Synchronous Playback	16-ch
Corridor Mode Screen	3/4/5/7/9/10/12/16
Decoding
Decoding format	Ultra 265, H.265, H.264
Live view/Playback	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080p@30, 32 x 960p@25
Hard Disk
SATA	4 SATA interfaces
Capacity	up to 10TB for each HDD
External Interface
Network Interface	1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
Serial Interface	1 x RS485
USB Interface	Front panel: 2 x USB2.0 Rear panel: 1 x USB3.0
Alarm In	16-ch
Alarm Out	4-ch
Power Output	12 VDC
PoE
Interface	16 independent 100 Mbps PoE network interfaces
Max Power	Max 30W for single port Max 200W in total ( 12.5W for each )
Supported Standard	IEEE 802.3at
General
Power Supply	100 ~ 240 VAC Power Consumption: ≤ 20 W( without HDD )

Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)	442 mm× 425mm×86mm (17.4" × 16.7"×3.4" )
Weight ( without HDD )	≤ 5.24 Kg ( 11.55 lb )
