Model

YC-9288-V3

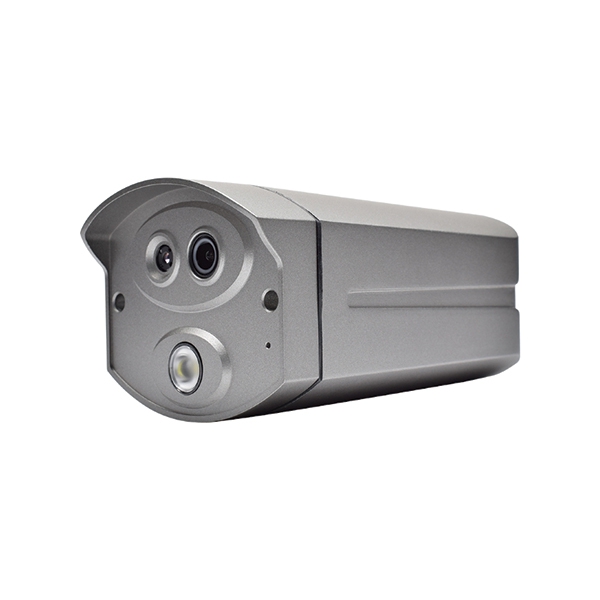

2MP AI Temperature indicator Thermal Binocular Camera

Thermal Imagery Module

Sensor Type

Silicon oxide non-cooled VOx infrared detector

Resolution

256x192

Size

12μm

Temperature measurement Range

0℃~60℃

Temperature measurement Accuracy

±0.3℃ target Temp 30℃~45℃;

±0.5℃ target Temp 0℃~30℃ or 45℃~60℃;

±2℃  The rest temp range;

Temperature measurement distance

0.5-3 meters（recommend 2-3 meters）

Lens

3.2mm


white heat, black heat, fusion, rainbow, autumn, noon, iron red, amber and other pseudo-color

Visible Light module

Image sensor

1/2.8”2.0M Pixel CMOS

Low lux

0.005Lux F1.2(color),0.001Lux F1.2(B/W)

WDR Range

≥80dB

S/N Rate

≥46dB(AGC OFF)

Lens

4mm

View Angle

Horizontal 84°,Vertical 45°

AI

Face snapshot

The built-in deep learning AI algorithm supports the simultaneous detection of at least 10 faces, face detection, exposure, scoring, screening, capture upload, support FTP,HTTP and other ways to upload face, head and shoulder, upper body, whole body, original picture and other pictures.

Face Recognition

Built in 50000 Face database

EMMC

Built in 16GB  support max 100000 temperature detection records

Temperature Function

Temp Detect

Support global and regional temperature measurement

Temp abnormal Alarm

High temp limitation

Network protocol

Support RTSP,RTP,TCP,UDP,UPNP,DHCP,PPPoE,ONVIF,GB/T 28181 Protocol Etc

Network Interface

1CH 10/100BaseT Ethernet,RJ45

Alarm

1 ch alarm out(Alarm linkage)

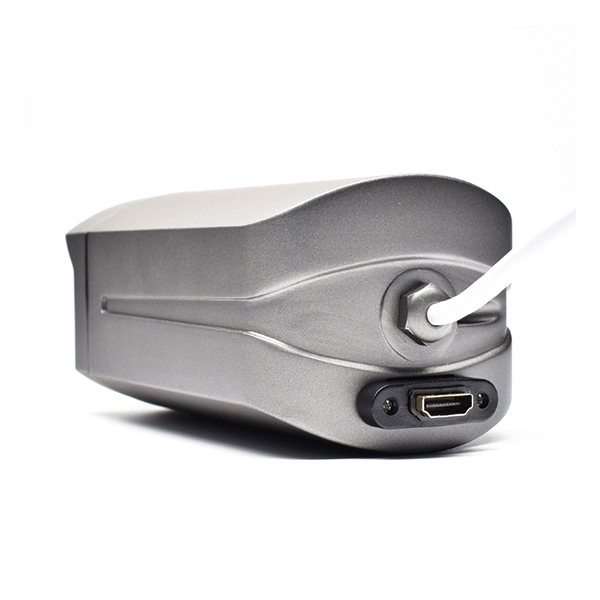

HDMI output

1CH HDMI Interface

Audio

1ch audio in/out

General

Recommend Working Temperature

10℃~40℃

Working humidity

0%-90% RH

Protect grade

IP65

Power supply

12VDC

consumption

≤5W

Product size

246mm*101mm*78mm

Weight

<1kg
