Wireless Kit & Camera

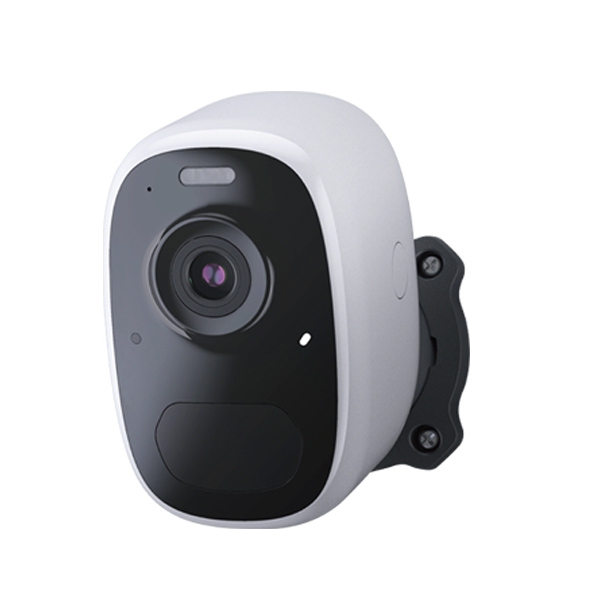

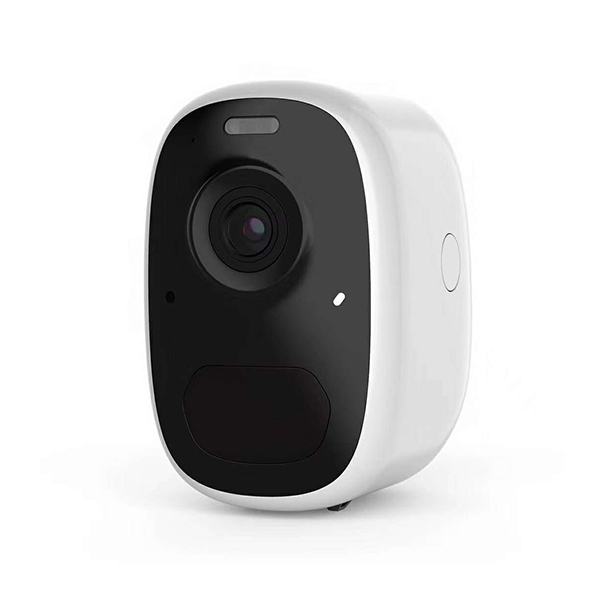

CG1 (Wifi battery camera)

2MP Wifi battery IP camera
2.4G Wifi (IEEE802.11B/G/N), built-in antenna
1080P HD resolution, 2.8mm wide angle lens
5200mAh (default, support standby for 3-6 months time), 6700mAh optional
Two way intercom (built-in microphone and speaker)
With SD card slot, support up to 128GB SD card

    Model: CG1

    Product Features:



















    ◆ Easy to install and use

    ◆ Clear and smooth video browsing; intelligent transmission giving full play to capabilities of the network

    ◆ Online firmware upgrade, and synchronous updating of the functions and experience

    ◆ Standard H.265 video compression algorithm enabling the transmission of high-definition videos  in networks with narrow bandwidth; local high-definition videos with high image quality and low stream

    ◆ Two-way voice intercom supported; echo eliminated; noise suppressed.

    ◆ Compatible with Android; remote real-time monitoring supported with the IOS intelligent terminal

    ◆ 2-megapixel high resolution (1920X1080) for clear picture quality

    ◆ Dual-source lighting for night vision (night vision distance = 7 m) comprising infrared lamp / white-light source; color images available for night vision.

    ◆ The built-in rechargeable lithium battery with long battery life functions for up to 6 months under normal circumstances and can stand by for 12 months.

    ◆ 2.4G Wi-Fi supported (IEEE802.11b/g/n)

    ◆ The image automatically flips with the installation direction of the device (G-SENSOR)

    ◆ Cloud storage, micro SD card (up to 128GB) and mobile phone video recording supported

    ◆ QR code intelligent connection and network allocation supported

    ◆ Supporting human contour detection, activity zone, intelligent push and pet snapshot

    ◆ IP65 dustproof and waterproof design for convenient installation; bracket with 1/4 universal screw and magnetic bracket supported

    Items

    Specifications





    Master Processor

    SOC

    HI3518E V300: A dominant frequency of 900 MHz

    DDR

    512M









    Image Sensor

    Sensor

    1/3" color CMOS Sensor

    Lens

    M12, f: 2.8mm, F2.0, 2-megapixel

    Visual Angle

    H (horizontal) 95 degrees; V (vertical) 55 degrees; D (diagonal) 110 degrees

    Minimum Illumination

    0.01 Lux





    Audio

    Input/Output

    Two-way voice intercom available (built-in microphone and speaker)

    Audio Compressing Method

    AAC













    Video

    Video Compressing Method

    H.265

    Lighting Frequency

    50Hz, 60Hz

    Image Frame Rate

    15 fps

    Maximum Image Resolution

    1920*1080P

    Light Source for Night Vision

    Mid-power infrared lamp (850nM in wavelength) / dual-source white-light source with an irradiation distance of 7m







    Network

    Wireless Network

    2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna

    Protocols Supported

    TCP/IP, UDP/IP, DHCP, RTMP, MUTP

    IP Address Supported

    Dynamic IP address supported

    AI

    Intelligent Features

    Human contour detection, activity zone,intelligent push, pet snapshot

    Alarm Methods

    Alarm Notification

    Alarm push by mobile APPwhite light flashing and alarm sound

    Wake-up

    Wake-up Method

    PIR body induction wake-up, and remote positive wake-up





    Video Recording

    Recording Method

    Alarm triggered recording, and manual recording

    Video Storage

    Cloud storage, local MICRO SD card, and mobile phone memory

    Indicator Lamps

    LED Indicator

    RGB tri-color lamp indicating the status of power/network signal/functionality











    Battery

    Capacity

    5200mAh(default )/6700mAh(need add 2USD)

    Removability

    Unremovable

    Battery Life

    6 months (provided that 20 10s videos are recorded per day)

    Standby Time

    1 year

    Charging Voltage

    DV 5V+-5%/1.5A

    Charge Time

    Within 8 hours

    Protection Method

    IP65 resistance to dust and water; over-current/over-discharge/over-charge/short circuit/charging protection at high & low temperatures



    Power Consumption

    Standby Power Consumption

    2.4mW (3.8V 0.63mA)

    Power Consumption of Daytime Operation

    1W (3.8V 264mA)

    Power Consumption of Operation at Night

    2.23W (3.8V 588mA)



    Interfaces

    Power Supply

    1 MICRO USB interface

    SD Card

    1 MICRO SD card (up to 128GB supported)

    Keys

    1 reset key and 1 on/off key

    Installation Method

    Installation Method

    Magnet and 1/4 universal screw holes



    Environment

    Dustproof and Waterproof

    IP65

    Operating Environment

    -10°~45°C / 0%~80% (no condensation)

    Storage Environment

    -20°C~60° / 0%~90% (no condensation)







    Specifications

    Size (LxWxH)

    84mm*62mm*92.5mm (with bracket excluded)

    Net Weight of Bare Machine

    Approx. 338g

    Finished Weight

    Approx. 570g

    Material + Process

    ABS + PC

    Color

    White with high gloss

    Certifications

    Certificate

    RoHSCEFCCWEEEMSDSUN38.3
