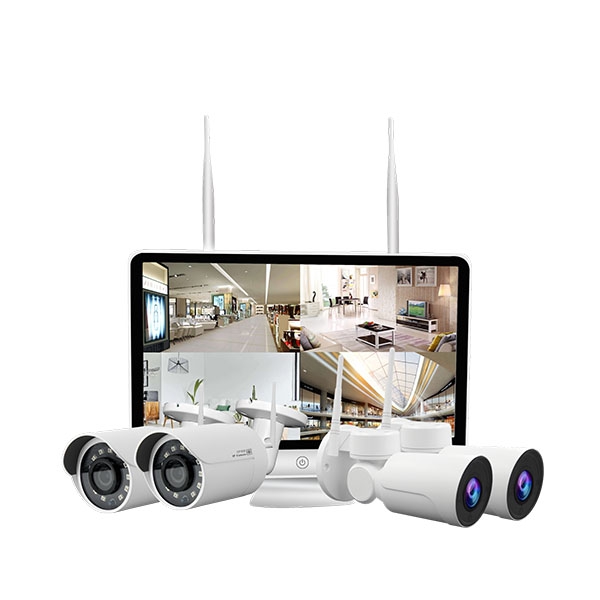

| 4CH Wireless WiFi NVR KIT | ||
| Camera Key Features: 1. 1080P HD video output 2. 2Db WIFI antenna and 100mbps water-proof RJ-45 port 3. Auto match the NVR channel and play video 4. Built-in IR leds, Day and Night monitoring 5. bullet and dome housing optional |
||
| NVR Key Features: 1. 1080P HDMI/VGA video output 2. Built-in dual 5Db high power WIFI antennas 3. Real Plug and Play, automatic connecting video 4. Easy QR code to download app and remote login 5. Support iPhone and Android app |
||
| Wireless NVR | ||
| Model NO. | YC-NVR9304WF-L | |
| Operating System | Embedded Linux OS | |
| Video Input | Network Video | 4CH 1080P |
| Network video input broadbank | 20Mbps | |
| Video Output | HDMI output | 1ch，resolution：1024x768,1366x768,1440x900,1920x1080p |
| VGA output | 1ch，resolution：1024x768,1366x768,1440x900,1920x1080p | |
| Recording | Record mode | Manual/Schedule/Motion/Alarm |
| Playback | by time/Event | |
| Backup | USB backup, network download | |
| Hard Disk | Type | 1*SATA |
| Max. Capacity | 6 TB | |
| Network | Network port | 1 - RJ45 10M/100M |
| Wireless | 2 - 5Db WIFI antennas | |
| Network Control | UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) DHCP (Automatically obtain an IP address), etc… |
|
| Others | Power Supply | DC12V/2A |
| USB | 2 - USB 2.0 for mouse and USB drive | |
| Power Consumption (W) | ≤5W（Without HDD） | |
| Operate Temperature (°C) | -10℃~+55℃ | |
| Working Humidity (%) RH | 10%~90% | |
| Dimension | 257mm（W）×210mm（V）×45mm（H） | |
| Weight（without HDD） | ≤1Kg | |
| Wireless camera- Bullet | ||
| Housing | Model | WF932AHZ37FA |
| Sensor | 1/2.7” Progressive Scan Sensor | |
| Signal System | PAL/NTSC | |
| Compression standard | H.265, H.264，H265+ | |
| Minimum illumination | Color: 0.01 Lux; 0 Lux with IR on | |
| Shutter | AUTO 1/25s - 1/25,000s | |
| Lens | 3.6MM | |
| IR LEDs | 12pcs | |
| IR Distance | 15-20m | |
| OSD | Date Time & Title | |
| White Balance | Auto | |
| Day&Night | Auto / Color / BW | |
| 3D-DNR | Auto | |
| Mirror/Flip | On / Off | |
| Audio | optional | |
| Video Stream | Main stream: 1920x1080@15fps Sub stream: 640x480/640x360/CIF@15fps |
|
| Network | RJ45 / WIFI 802.11b/g/n | |
| Working Temperature/Humidity | -10℃ to +50℃ / 30% to 80% RH | |
| Storage Temperature/Humidity | -20℃ to +60℃ / 20% to 90% RH | |
| Power Input | DC12V-1A | |
| Power consumption | ≤6W | |
| Dimension | 205(L)×70(W)×55 (H)mm | |
| Weight | ≤1Kg | |
| Wireless camera-PTZ | ||
| Housing | Model | WF932-30PTZ |
| Sensor | 1/2.7” Progressive Scan Sensor | |
| Signal System | PAL/NTSC | |
| Compression standard | H.265, H.264，H265+ | |
| Minimum illumination | Color: 0.01 Lux; 0 Lux with IR on | |
| Shutter | AUTO 1/25s - 1/25,000s | |
| Lens | 2.8-12mm Motorized Zoom lens. | |
| IR LEDs | 6pcs | |
| IR Distance | 20-25m | |
| OSD | Date Time & Title | |
| White Balance | Auto | |
| Day&Night | Auto / Color / BW | |
| 3D-DNR | Auto | |
| Mirror/Flip | On / Off | |
| Audio | optional | |
| Video Stream | Main stream: 1920x1080@15fps Sub stream: 640x480/640x360/CIF@15fps |
|
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 180°; Tilt: 0° ~ 55° | |
| Preset Point | 1 | |
| Manual Control Speed | Pan: 0.5° ~20° /s; Tilt: 0.5° ~10° /s | |
| Guard Position | Support | |
| Power-off Recovery | Support | |
| Network | RJ45 / WIFI 802.11b/g/n | |
| Working Temperature/Humidity | -10℃ to +50℃ / 30% to 80% RH | |
| Storage Temperature/Humidity | -20℃ to +60℃ / 20% to 90% RH | |
| Power Input | DC12V-1A | |
| Power consumption | ≤6W | |
| Dimension | 205(L)×70(W)×55 (H)mm | |
| Weight | ≤1Kg | |
